Karl Miller is out with another report on the state of the oil production infrastructure in the Persian Gulf and, as always, it is a must read. Unfortunately, it is behind a firewall but he has given me permission to summarize his findings and share them with you. So here goes.
There is a comforting assumption buried in nearly every oil forecast on the market right now: that the day the Strait of Hormuz reopens, the Persian Gulf’s missing barrels come flooding back, prices normalize, and the shock is over. A detailed engineering-and-financial model of the restart says that assumption is not merely optimistic — it is wrong by years and by trillions of dollars. The day safe passage returns is not the end of the disruption. It is Day 0 of a five-year industrial rebuild.
The market is starting from the wrong number
The first error is the baseline. Analysts leaned on a roughly 8.3 mb/d loss figure that captured a temporary rebound in Gulf production, not the full loss of marketable liquids. Corrected, the model begins with the prewar Hormuz system moving 20 mb/d of crude, condensate, products, and LPG, against barely 1.5 mb/d still trickling out today — and it separates two numbers the market keeps conflating.
The first is an 18.5 mb/d exportable-supply deficit — the market-facing shortfall, the prewar flow no longer reaching buyers. The second is a 13.5 mb/d upstream outage — the production capacity actually shut in. The five-million-barrel gap between them is the tell: it is not oil waiting in the ground, it is oil that cannot move because the processing plants, storage tanks, pipelines, terminals, and loading berths between the wellhead and the tanker are damaged or offline. Reopening the strait addresses none of it.
The damage begins at the wellhead
Let me explain why a shut-in is not a pause but is physical. When wells sit dead for months, static fluids separate, reservoir pressure redistributes, and scale, wax, asphaltenes, and emulsions form in the tubing and the rock itself. In the Gulf’s sour fields, hydrogen-sulfide fluids attack tubing, casing, valves, and downhole safety equipment the moment corrosion control and surveillance stop. Injectors that were stopped abruptly backflow and sand up; mature waterfloods lose the pressure balance that sweeps oil toward producers; and artificial-lift wells accumulate their own failure stack — burned-out electric submersible pumps, seized equipment, gas-locked and failed gas-lift valves waiting on long-lead replacement parts.
The consequence is that the first flow test proves only that a well can flow. It does not prove thirty-day stability, reservoir balance, export-quality output, or repeatable deliverability. Counting a one-day test rate as restored capacity is exactly the mistake the model is built to prevent.
Every barrel must clear five gates
Even a healthy well produces nothing marketable until it clears a chain of serial gates: mechanical (barriers, tubing, tree, and safety systems pass), reservoir (pressure, water cut, gas, and sand stabilize), process (separation, compression, sulfur removal, power, and metering are available), product (crude or gas is on-specification with storage to receive it), and export (pipeline, berth, loading arm, tanker, crew, pilot, insurance, and payment all function). A single failed gate strands everything behind it. Open a well before the next gate is ready and you create no supply — and may force another shut-in.
This is why the schedule is governed by shared systems, not well counts. One unavailable node — an injection header, a gas-oil separation plant, a compressor, a power substation, a sulfur train, a tank farm, a single loading arm — can neutralize hundreds of otherwise-intact wells. A well-by-well repair tally dramatically understates the timeline, because the bottlenecks are the systems every well depends on. An open shipping channel, the model notes pointedly, does not prove a loadable berth.
The timeline, and the money

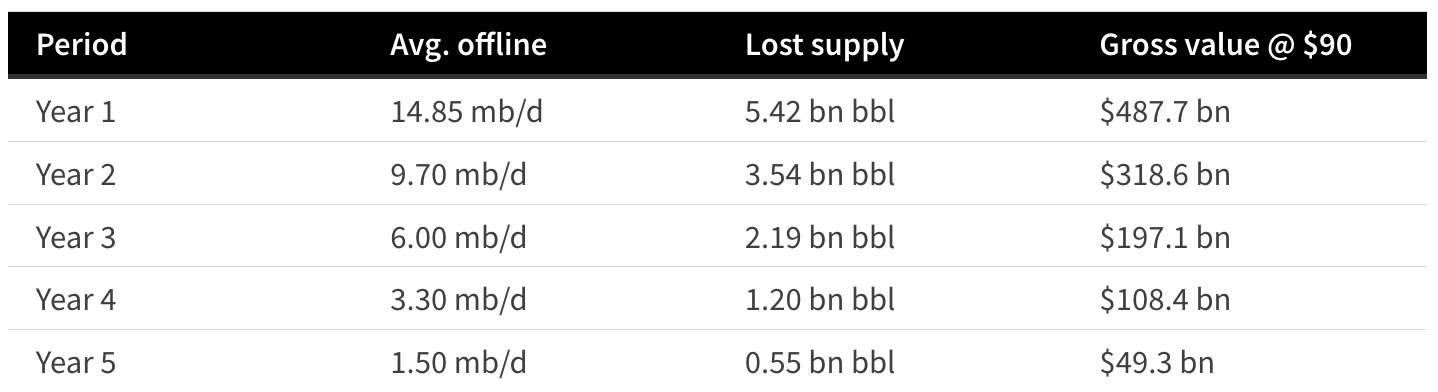

Put the engineering into a curve and the loss is heavily front-loaded, because the largest volume is missing precisely while the industrial machine to fix it is still being assembled. In the central case, one year after reopening, 11.8 mb/d of exportable supply and 9.5 mb/d of upstream capacity are still offline. Year 1 alone removes 5.42 billion barrels from the market.
The central case loses 12.9 billion barrels of exportable supply over five years — about $1.16 trillion in gross sales at $90 — and requires a restart-funding envelope of $380–870 billion. Two worse cases are not tail risks so much as plausible variants: a “constrained” case (scarce rigs, financing friction, marine disruption) loses 17.5 billion barrels and $1.57 trillion, and a “structural damage” case loses 21.97 billion barrels and $1.98 trillion — and is still 6.0 mb/d short at the end of Year 5, when the central case has nearly closed.
Who is short, and by how much

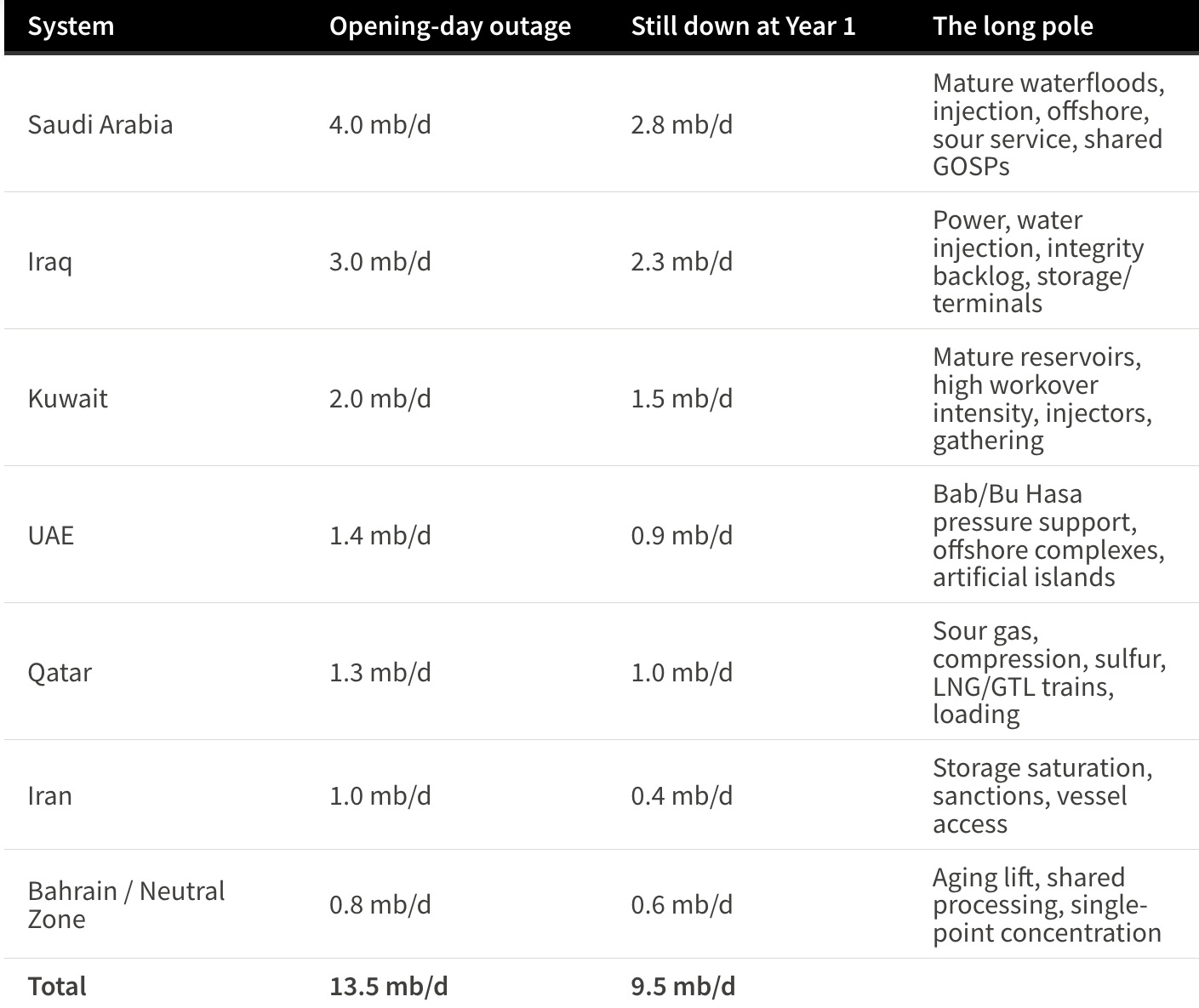

The 13.5 mb/d upstream outage is not evenly spread, and the Year-1 residual shows why a headline “4 mb/d still down” figure would badly understate the wellhead problem — the real Year-1 residual is 9.5 mb/d.
The two constraints money can’t buy through
Even fully funded, the rebuild runs into two hard limits. The first is working capital, and its timing is brutal: restart cash leaves before production cash returns. Deposits and procurement come before mobilization, mobilization before intervention, intervention before stable output, stable output before an on-spec cargo, and the cargo before anyone collects a dollar. A region whose operators need spendable cash now — for payroll, security, chemicals, spares, war-risk insurance — is asked to spend for a year or more before revenue recovers, which is why the model calls for a purpose-built financing stack: super-priority restart revolvers, hard-currency procurement lines, contractor-mobilization facilities, and export-receivable bridges.
The second limit is industrial capacity, and money cannot conjure it. Certified crews, drilling and workover rigs, offshore vessels, ROV and diving spreads, OEM field service, and long-lead sour-service components — tubulars, downhole safety valves, ESPs, compressors — cannot be summoned on demand, least of all when the entire Gulf is bidding for the same scarce equipment at once. The five-year curve is an industrial-capacity curve as much as a reservoir curve.
The bottom line for the market
The single most important sentence in the analysis is its warning to forecasters: any supply model that snaps Gulf barrels back the moment the strait reopens overstates prompt supply, understates the cumulative loss, and ignores the capital and industrial capacity needed to rebuild the well-to-tanker chain. The correct discipline is to count wells only after mechanical and reservoir stability, fields only after shared processing is stable, product only after specification and storage, and exports only after repeated insured liftings — one vessel movement is not a corridor.
For anyone trying to understand why the diesel and crude squeeze of the past months will not simply evaporate with a ceasefire, this is the answer. The tightness in the middle-distillate and crude markets is not a headline that clears when the shooting stops and the shipping lanes open. It is the leading edge of a multi-year structural shortfall, front-loaded into the next twelve to twenty-four months, and priced accordingly. Reopening the strait ends the blockade. It does not restart the Gulf.
